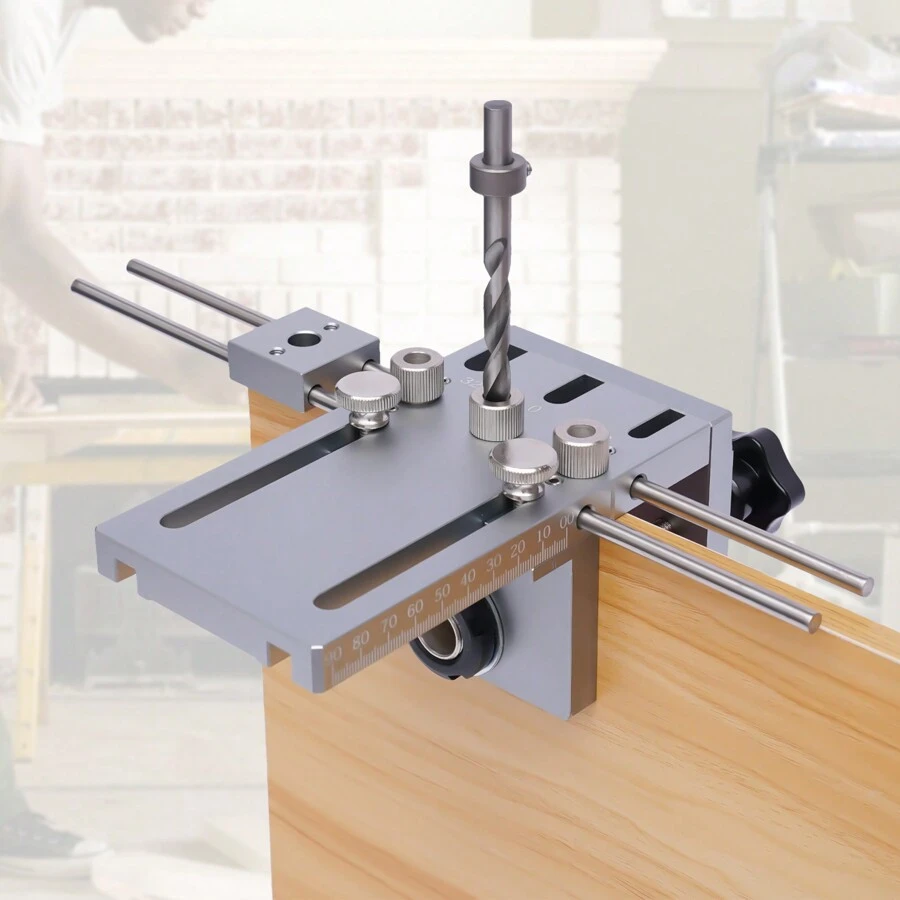

Description Our hole locator is made of high-quality materials such as aluminum alloy and nitride tool steel, corrosion-resistant, wear-resistant and high strength. It is equipped with 9 threaded sleeves and three drill bits of 6/8/10mm size, along with a clear metric scale, making it so precise and practical that it is a good choice for DIY enthusiasts and woodworking enthusiasts. Key Features Exquisite Processes: The rigorous and precise processes including CNC computer engraving and casting ensure high precision and long service life. Precise Positioning&Drilling: The 6/8/10mm threaded drill sleeves, strong magnetic plate and two clamping methods (horizontal and vertical) allow you to easily and accurately find the center and drill holes of the appropriate size. Multiple Functions: This hole locator can be used for opening eccentric wheel holes, rubber particle holes of connecting rods, tenon holes and L-type&T-type three-in-one joints, which are optional and practical. High Portability: The punching tool weighs only 4.14 lbs, which is convenient to carry and store. Details Clear Scale: The clear and precise metric scale makes it easy to find the center of a board edge every time without tedious trial and adjustment. Parallel Arms: Two precisely manufactured parallel arms can be quickly adjusted to the material thickness, and then the central rod is placed in the center of the material, making the work easier. Special Rail: When punching the side with the special rail, it is not necessary to use pliers to clamp the board. Application It is suitable for all kinds of furniture such as doors, windows, cabinets, tables, etc. And it is an ideal choice for clamping boards with thickness less than 3.5". How to use 1. Measure the thickness of the board to be punched. 2. Adjust the position of the eccentric drill sleeve according to the specification of the connecting rod. 3. Adjust the slider position scale so that the scale value is half of the board thickness. If the corresponding scale cannot be aligned, add a washer of the appropriate size. Specifications Color: Silver Drill guide material: Aluminum alloy 6061 Drill body material: Nitrided tool steel Surface treatment: Anodic oxidation Process: CNC computer engraving and molding Style: Practical Power source: Hand-operated Side hole accuracy: <0.5mm/0.02inch Clamp board thickness: <90mm/3.5inch Connecting rod length: About 32mm/1.26inch Hole thickness: 10-180mm/0.4-7.08inch Side hole diameter: 15mm/0.59inch Positive hole size: 6mm/0.23inch, 8mm/0.315inch, 10mm/0.4inch Slider stroke: 5-90mm/0.2-3.54inch Side hole stroke: 23-43mm/0.9-1.69inch Guide rail length: 30cm/11.8inch Clamp plate height: 88mm/3.46inch Motherboard size (L*W): 173*88mm/6.8*3.46inch Package size: 34*22*6cm/13.38*8.66*2.36inch Net weight: 1.6kg/3.5lbs Gross weight: 1.88kg/4.14lbs Package included 1* Hole locator 3* 6mm drill sleeves 3* 8mm drill sleeves 3* 10mm drill sleeves 1* 6mm edging ring 1* 8mm edging ring 2* 10mm edging rings 1* 6mm drill bit 1* 8mm drill bit 1* 10mm drill bit 2* Star screws 1* 15mm hole opener 1* Crescent wrench 1* Clamp plate 1* Slider set 1* Base plate 2* Wrenches 1* Chinese&English manual Notes 1. Since the slider moves 2mm each time, it can only be adjusted to the center of the 10, 14, 18, 22mm etc. thick plates. If the thickness of the plate is not suitable, it can not be aligned to the center to punch holes without adding a washer. 2. Please control the drilling depth by adjusting the edge ring. 3. Please read the Chinese and English manual carefully before using the machine. If you need the operation video for reference, please contact us. 4. Please allow slight color difference caused by shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
| Color | Silver |
| SKU | sr2407030365791422 |
